Bambu Lab

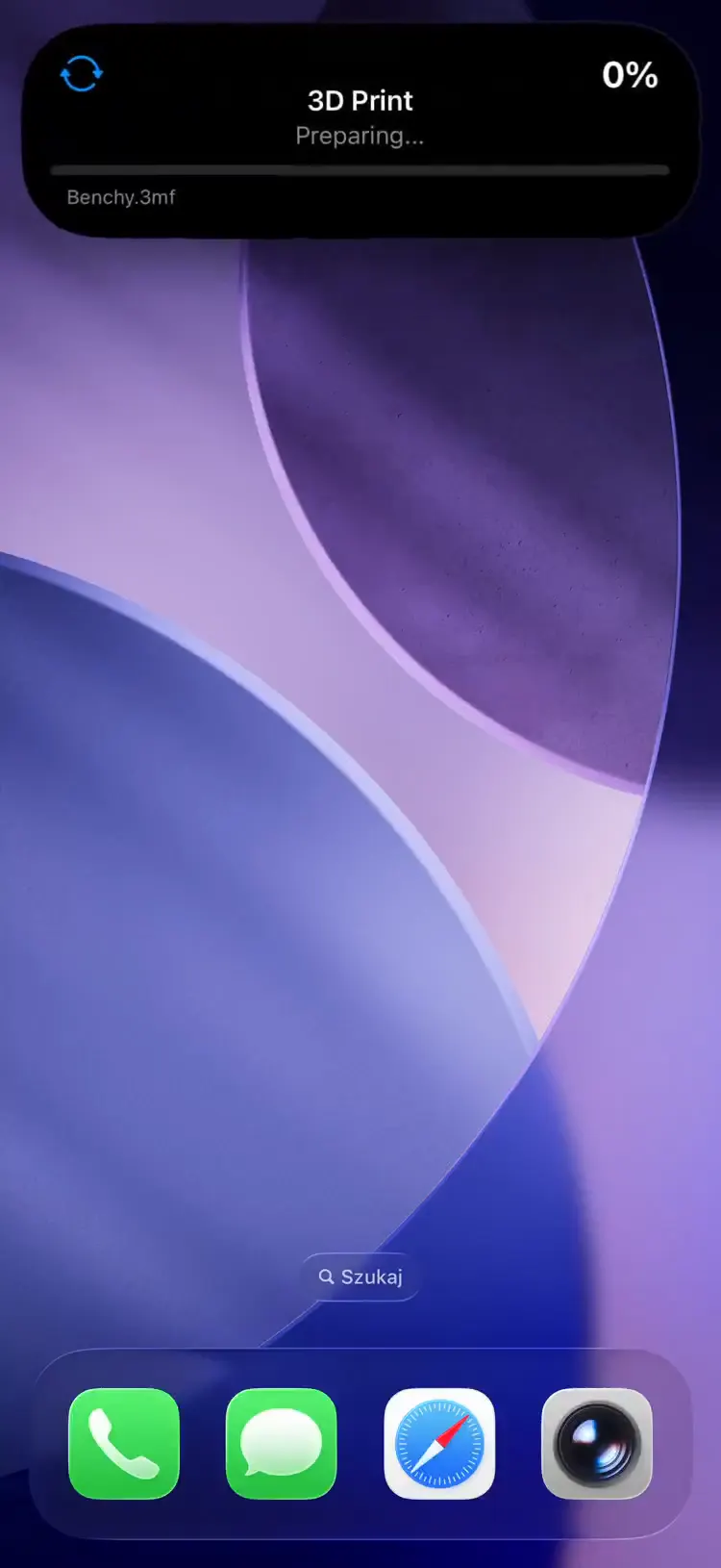

Track Bambu Lab 3D print progress as a Live Activity on your iPhone Lock Screen - layer counts, nozzle temperature, and ETA via local MQTT.

How It Works

The pushward-bambulab bridge connects directly to your printer over local MQTT (no cloud dependency) and streams print progress to PushWard.

MQTT connection -- connects to printer on port 8883 using TLS with the printer's access code
State tracking -- subscribes to printer reports and merges delta updates into a full state
Progress updates -- sends layer count, nozzle temperature, and progress bar to PushWard every 5s (configurable)
Lifecycle management -- automatically starts tracking when a print begins and ends when it finishes, fails, or is cancelled

Setup

1. Enable Developer Mode

On your Bambu Lab printer, enable LAN Only mode, then turn on Developer Mode (Settings > LAN Only > Developer Mode). Developer Mode is the setting that opens the local MQTT channel this bridge connects to -- LAN Only mode on its own may not.

2. Get the Access Code

Read the 8-character access code from the printer's screen. The exact location depends on the model: P1P/P1S under Settings > WLAN; X1/X1 Carbon/X1E/H2 under the General tab in Settings; A1/A1 mini on the LAN Only Mode screen. If no access code is shown, enable LAN Only mode first.

3. Get Your Integration Key

Copy your default integration key from the PushWard app under Settings → Integration Key; it is created automatically when you sign in. To restrict a key to this integration, see creating scoped keys.

4. Deploy the Bridge

docker-compose.yml

services:
  pushward-bambulab:
    image: ghcr.io/mac-lucky/pushward-bambulab:latest
    environment:
      PUSHWARD_URL: https://api.pushward.app
      PUSHWARD_API_KEY: hlk_YOUR_INTEGRATION_KEY
      PUSHWARD_BAMBULAB_HOST: 192.168.1.100
      PUSHWARD_BAMBULAB_ACCESS_CODE: 12345678
      PUSHWARD_BAMBULAB_SERIAL: 01S00A123456789
    restart: unless-stopped

ℹ Info

No ports need to be exposed -- the bridge connects outbound to both the printer (MQTT) and PushWard API.

Configuration

Environment Variable	Description	Default
`PUSHWARD_URL`	PushWard server URL	--
`PUSHWARD_API_KEY`	Integration key (`hlk_` prefix)	--
`PUSHWARD_BAMBULAB_HOST`	Printer IP address or hostname	--
`PUSHWARD_BAMBULAB_ACCESS_CODE`	8-character access code from the printer screen (P1P/P1S: Settings > WLAN; X1/H2: General tab; A1/A1 mini: LAN Only Mode screen)	--
`PUSHWARD_BAMBULAB_SERIAL`	Printer serial number (15 characters)	--
`PUSHWARD_BAMBULAB_CERT_FINGERPRINT`	Optional SHA-256 fingerprint of the printer cert (hex, with or without `:` separators). Pins TLS to that exact cert. When unset, the bridge auto-pins on first connect (TOFU).	--
`PUSHWARD_POLL_INTERVAL`	How often to send progress updates	`5s`
`PUSHWARD_PRIORITY`	Activity priority (0-10)	`1`
`PUSHWARD_CLEANUP_DELAY`	How long the activity stays after ending	`15m`
`PUSHWARD_STALE_TIMEOUT`	Ends activity if no updates received	`60m`

ℹ Info

To pin explicitly up front (recommended for hardened setups), extract the printer's SHA-256 fingerprint from a trusted network and set PUSHWARD_BAMBULAB_CERT_FINGERPRINT:

openssl s_client -connect <printer-ip>:8883 -servername <printer-ip> </dev/null \
  | openssl x509 -fingerprint -sha256 -noout

Run this on a network you trust — TOFU (auto-pin on first connect) and ad-hoc fingerprint extraction are both only as trustworthy as the network at extraction time. openssl will print "verify error" lines for the printer's self-signed cert; those are expected and the fingerprint output below is still valid. The fingerprint changes any time the printer regenerates its cert (e.g. after a factory reset).

Print States

Printer State	Live Activity	Color
`PREPARE`	Preparing...	Blue
`RUNNING`	Layer N/M	Blue
`PAUSE`	Paused	Orange
`FINISH`	Complete	Green
`FAILED`	Failed	Red

💡 Tip

The bridge automatically resumes tracking if it starts while a print is already in progress, so it recovers gracefully from restarts.

Activity Slug Format

Uses the format bambu-<serial> (serial lowercased), e.g. bambu-01s00a123456789. One activity per printer.
